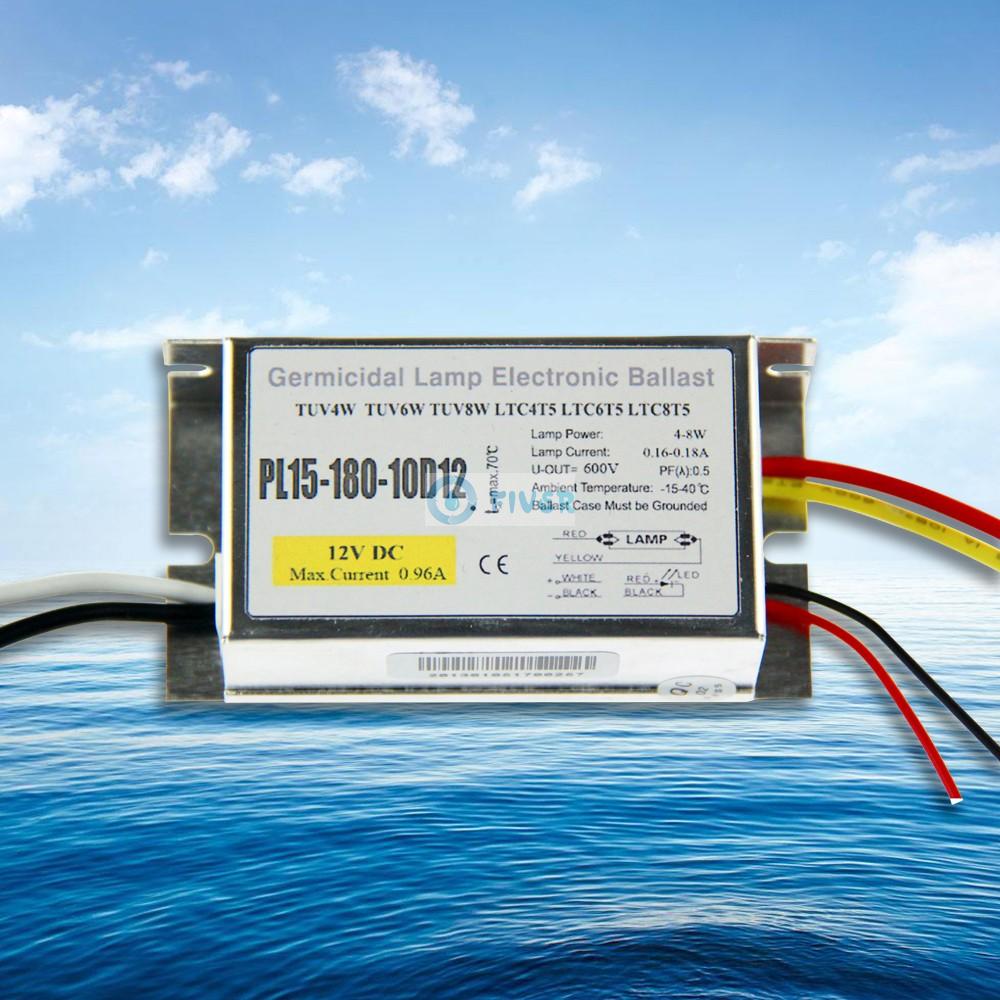

12V DC UVC Ballast For 4-10W UV Lamp

Features:
Instant Start
Constant power design
5V output function
LED indicator(green and red light)
Under-voltage protection function
Effectively protect life of battery

Load Lamp:
TUV4W,TUV6W,TUV8W,
PL-S 5W(4P),LTC4T5
PL-S 7W(4P),LTC6T5
LTC8T5,GPH100T5L

INQUIRY

Product Details

Product Tags

12V DC UVC Ballast For 4-10W UV Lamp

Technical Parameter:

Input Voltage	10.8V-13.2V
Max. Input Power	12W
Max. Input Current	1.0A@12V
Power per Lamp	4-10W
Lamp Current	0.15-0.18A
Operating Frequency	40-70KHz
Efficiency	≥85%
Start Way	Instant Start
Power Factor	≥0.98
Total Harmonic Distortion	＜15%
Crest Factor	＜1.7
Ambient Temperature	－15-40℃
Maximum Case Temperature	70℃
The Authentication Meet	CE UL
1: Above is standard features. 2: OEM service is available.
