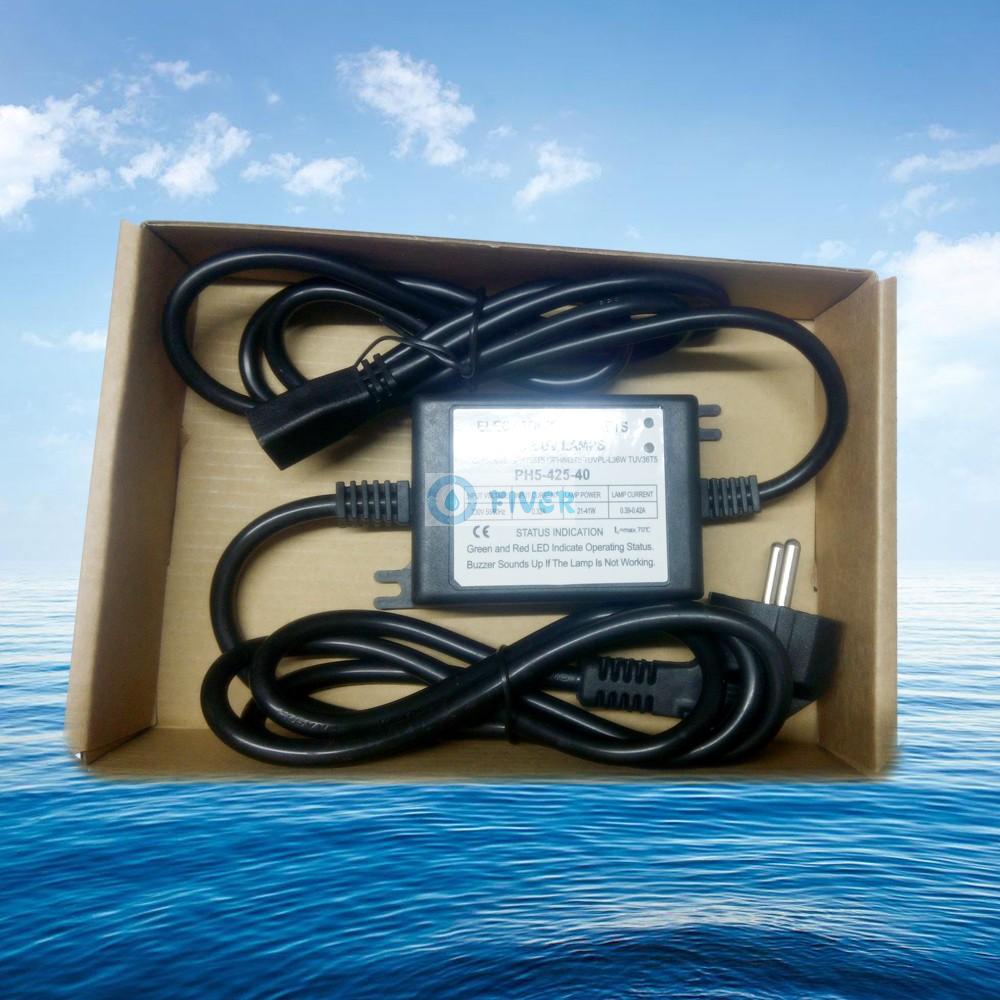

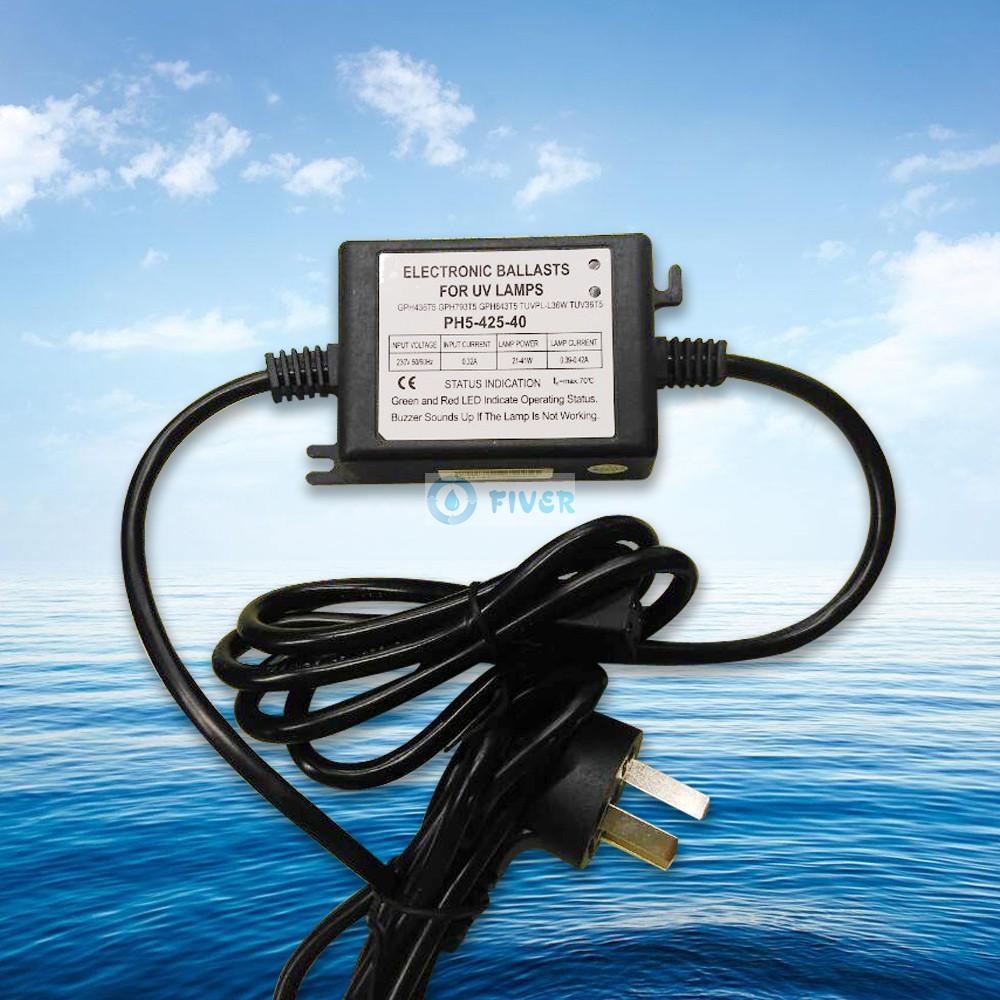

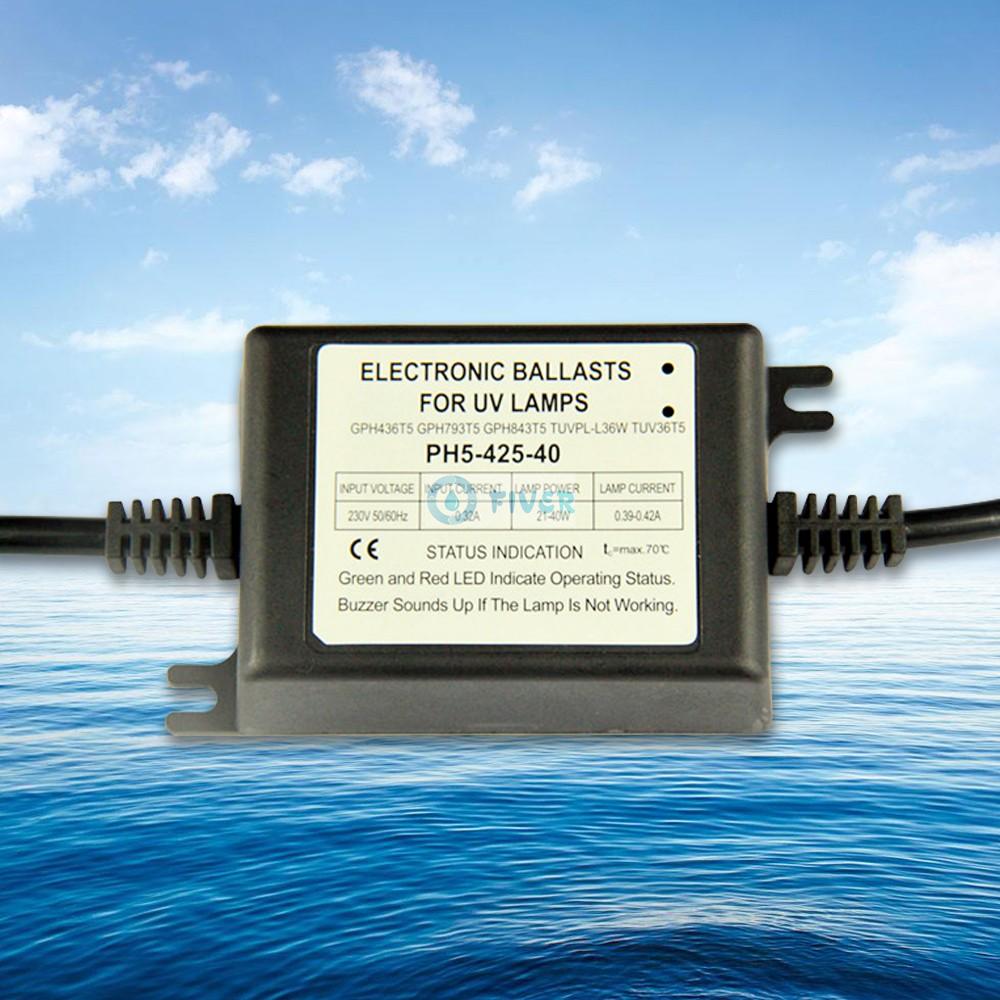

24V Ultraviolet Ballasts For 10-24W UV Lamp

Features:
Pre-heat Start
Constant power design
LED indicator(green and red light)
Under-voltage protection function
Effectively protect life of battery
AC-DC double voltage design

Load Lamp:
GPH150T5L, GPH212T5L,GPH287T5L
GPH303T5L,TUV11W, TUV16W,GPH357T5L
GPH436T5L,TUV21W,TUV24W

Product Details

Product Tags

24V Ultraviolet Ballasts For 10-24W UV Lamp

Technical Parameter:


Input Voltage

24VDC/AC

Max. Input   Power

24W

Max. Input   Current

1.0A@24V

Power per Lamp

10-24W

Lamp Current

0.33-0.39A

Operating   Frequency

40-70KHz

Efficiency

 ≥85%

Start Way

Pre-heat Start

Power Factor

≥0.98

Total Harmonic   Distortion

15%

Crest Factor

1.7

Ambient   Temperature

15-40

Maximum Case   Temperature

70

The   Authentication Meet

CE UL

1: Above is   standard features. 2: OEM service is available.

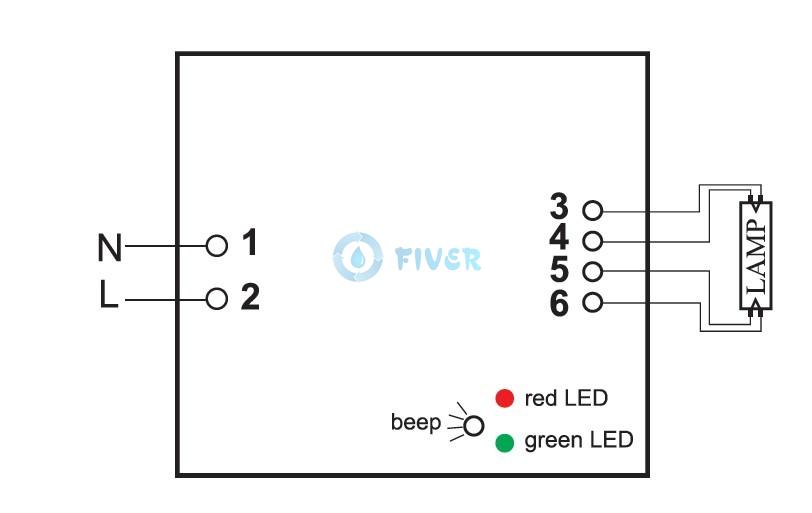

Wiring Diagram:


PH5-425-40接线图.jpgDimension:



Size: 105x60x30mm

Advangtage of UV Bulb Ballast:

  • 30% Less Energy Use Than Traditional Magnetic Ballasts

  • Constant UV Output Eliminates Buck/Boost Transformer

  • Draws 25% Less Current Than Magnetic Ballasts

  • Extended Lamp Life Reduces Maintenance Costs

  • Low Radiant Heat Reduces Air Conditioning Costs

  • Lighter Weight Ballasts Than Magnetic Ballasts

  • Dimming Fuction From 30% to 100%
