2KW CSUN UV Curing Lamps Replacement For Shoes Machine

Why choose FIVER?
1.More Than 30 Years Experience on UV curing lamps.
2.Exporting UV curing lamps to Over 50 Countries
3.More Than 5,000 Customers Trust Our UV Products
4.Long Time Warranty of UV Lamps.
5.24/7 Working Operation with Excellent After-sales Service
6.Low Repair Rate as Low as to 0.04%(30 Years Average )
7.OEM&ODM Service for UV Curing Lamps with Low MOQ

INQUIRY

Product Details

Product Tags

FIVER 2KW UV curing lamps can perfect replace Zhisheng lamps, such as CS101, CS102, CS134, CS-339, CS-442, CS338, CS239, CS284, CS342, CS137, CS343, CS146, CS285, CS5, CS7, CS9, CS140, SUV90US-43 (LCD-specific), CS445, CS393, CS394, CS395, CS447, etc.

This Kind UV Curing lamps are used for shoe machine, CS101, CS102, TG-17, TG-16. These lamps are used for drying UV varnish on shoe surfaces and shoe soles and adhesives.

They are mainly applied in shoe material UV curing machines, sports shoe UV curing machines, and some Taiwanese Zisheng equipment.

The model CS101 (total length 400mm / metal head) is widely used.

The light spectrum is between 350nm and 450nm, with 365nm as the center.

Common power: 2KW, Length: 400mm (metal lamp cap), 2KW, Length: 340mm (ceramic lamp cap with external lead wire), Average lifespan: over 1000 hours.

Complementary products: UV curing machine transformer, capacitor, lampshade, reflector, UV cold mirror, fixed lamp holder, etc.

The curing principle of UV glue for shoe machinery:

Due to the high crystallinity of MOULD and the low polarity of EPDM, EVA and other materials, they are not easy to adhere. We first use UV curing to polarize the surface of these materials and make them easier to adhere. After drying, we irradiate them with our UV ultraviolet lamp to split the initiator and generate free radicals, which initiates the polymerization reaction, allowing the UV curable polymer and UV curable monomer to adhere to the shoe material. The adhered shoe material has an increased polarity and becomes easier to adhere.

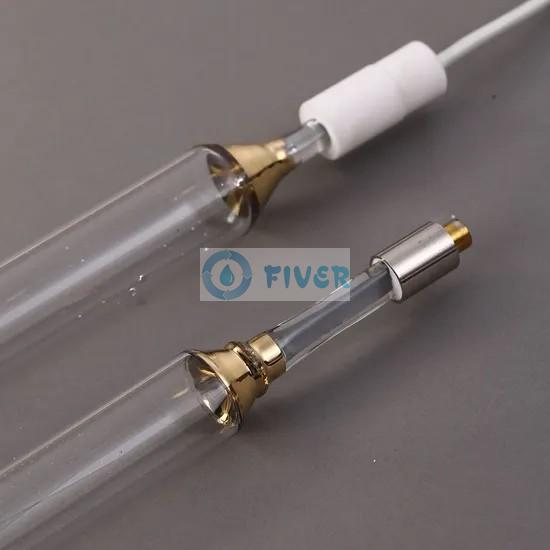

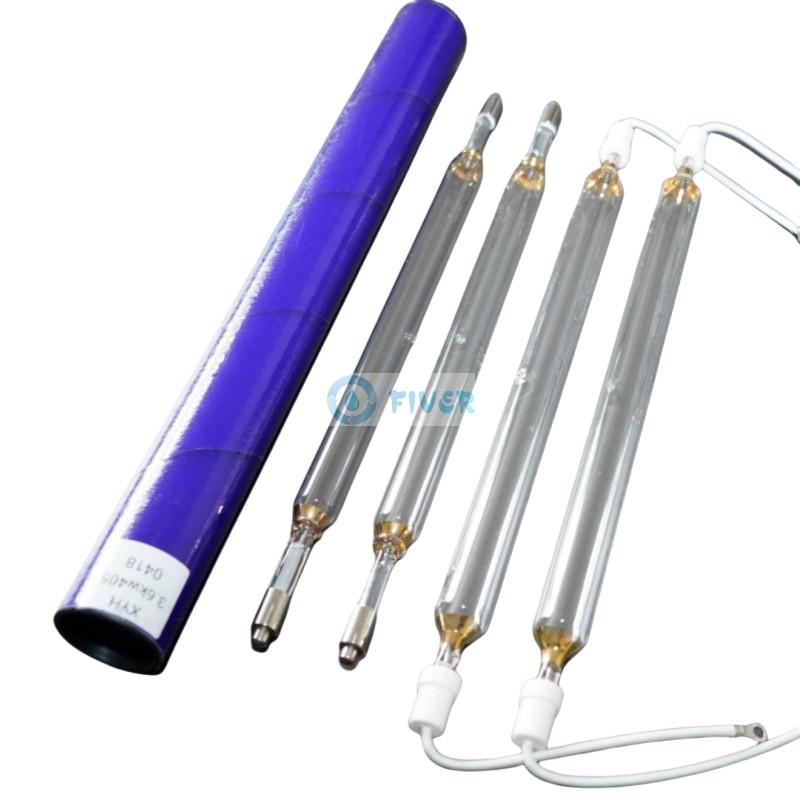

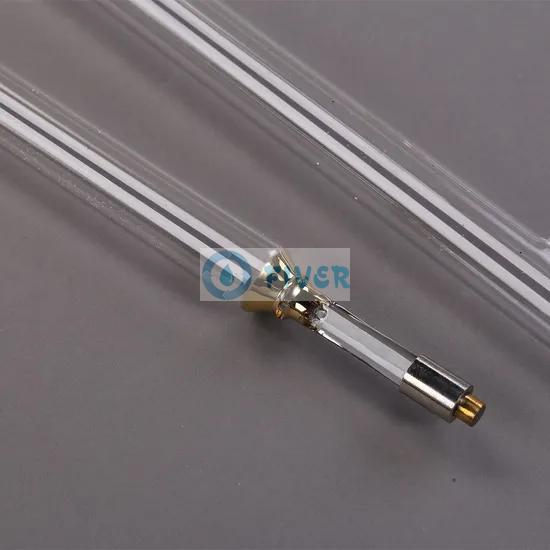

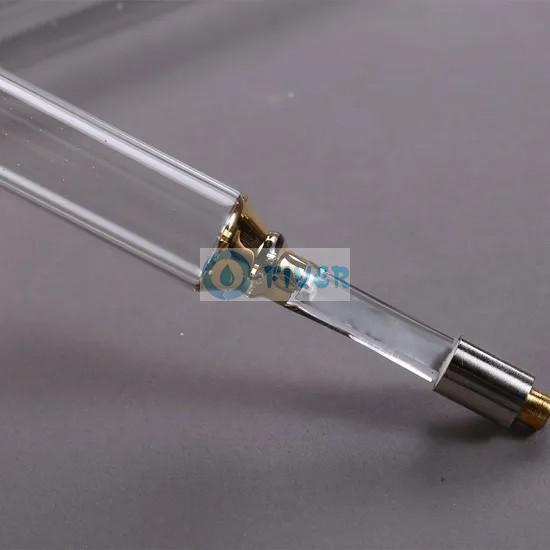

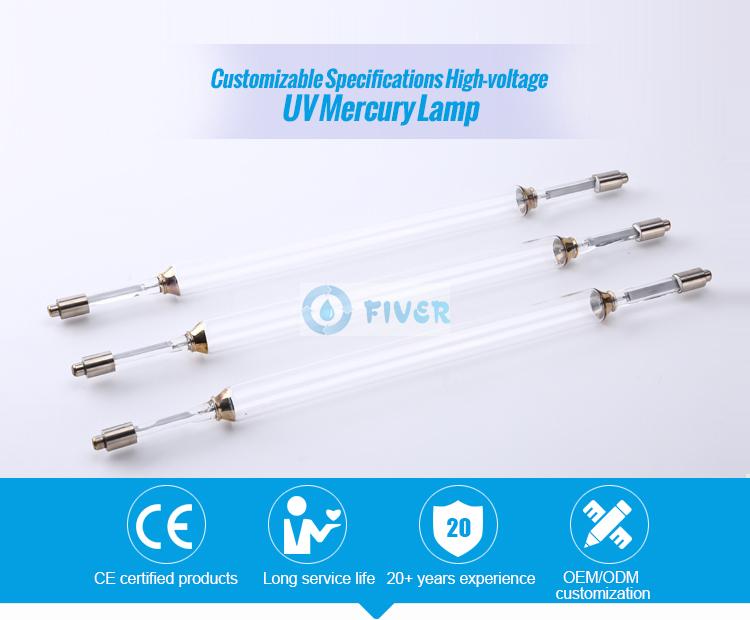

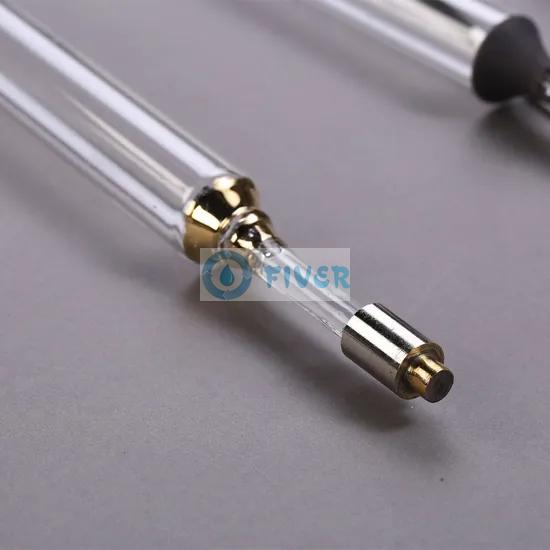

Real Proucts Show Of FIVER 2KW CSUN UV Curing Lamps Replacement For Shoes Machine:
