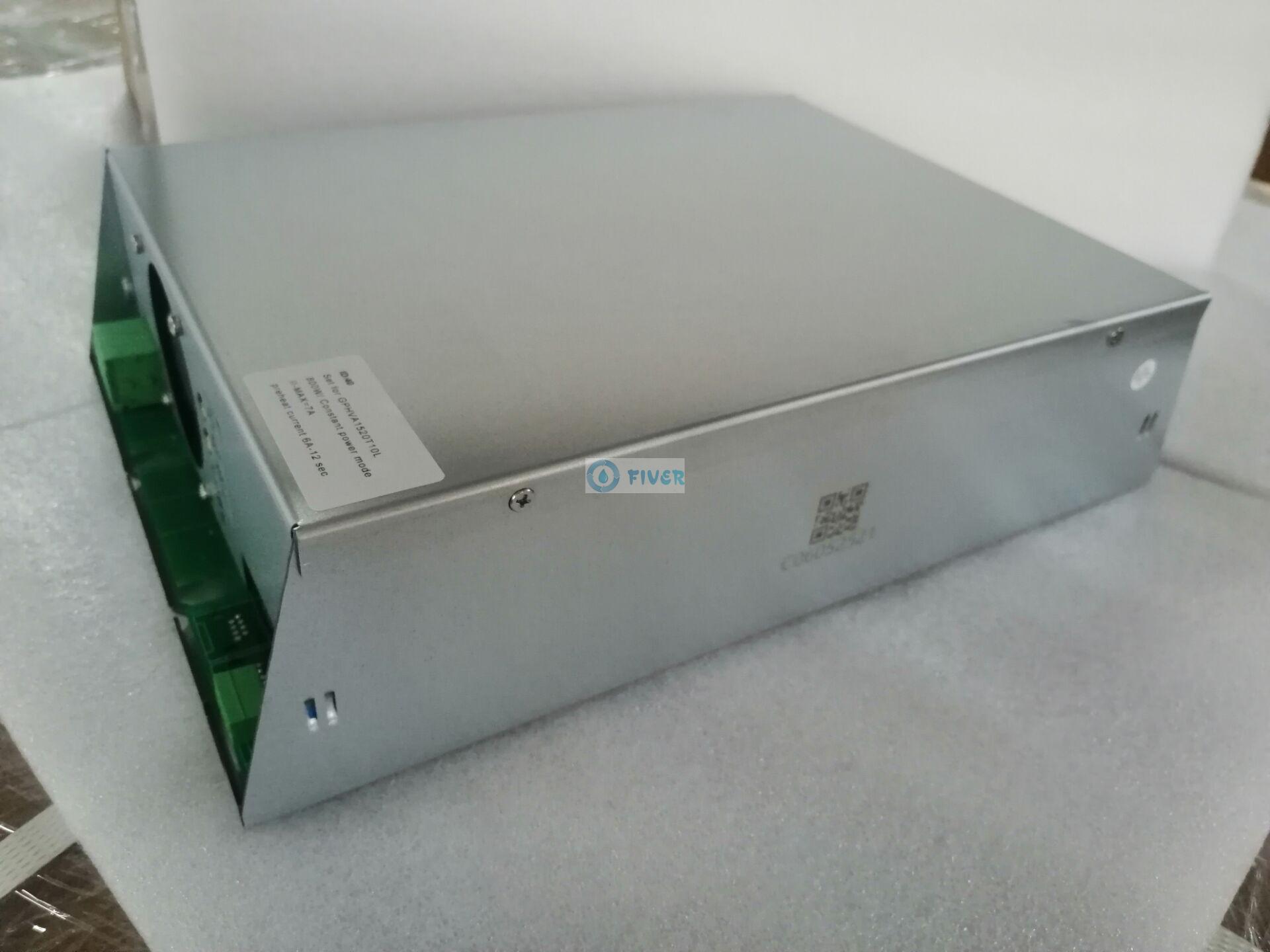

800W Nedap 085900388 UV Lamp Driver PN 9560114

Features:
Preheat Start
Constant power design
CE UL List Products
0-5V output and dry contact Function
ON/OFF time up to 50,000 times

Load Lamp:

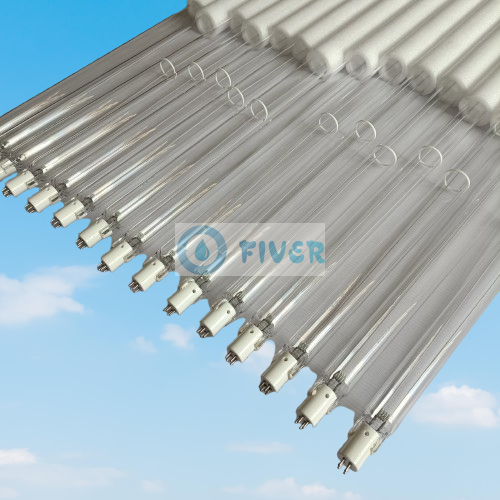

GPHMVA843T10,GPHMVA1000T10,GPHSVA843T10
GPHMVA1200T10,TUV800W XHO SE,GPHHA1554T10
GPHSVA1000T10,GPHSVA1200T10,GPHSVA1554T10

INQUIRY

Product Details

Product Tags

800W Nedap 085900388 UV Lamp Driver PN 9560114：

Technical Parameter:

Input Voltage	198-264V
Max. Input Power	840W
Max. Input Current	3.75A@230V
Power per Lamp	800W UV Lamp
Lamp Current	7.0-8.0A
Operating Frequency	40-70KHz
Efficiency	≥95%
Start Way	Preheat Start
Power Factor	≥0.98
Total Harmonic Distortion	＜15%
Crest Factor	＜1.7
Ambient Temperature	－15-40℃
Maximum Case Temperature	80℃
The Authentication Meet	CE UL
1: Above is standard features. 2: OEM service is available.
