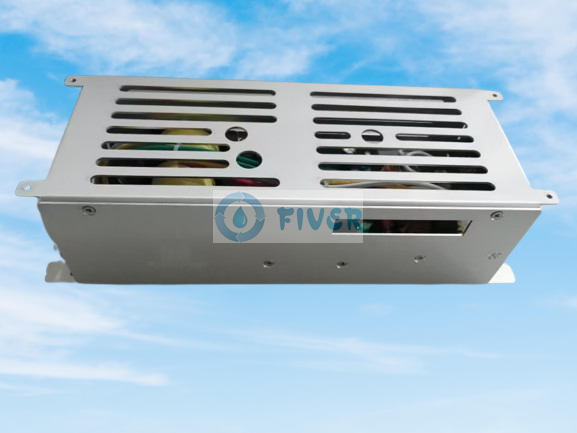

2X160W FM-3NX UV Electronic Ballasts Replacement

Features:
Instant Start
Constant power design
CE UL Rohs List Products
0-5V output function
ON/OFF time up to 50,000 times

Load Lamp:
GPH1554T5HO,GHO64T5,TUV64T5HO

INQUIRY

Product Details

Product Tags

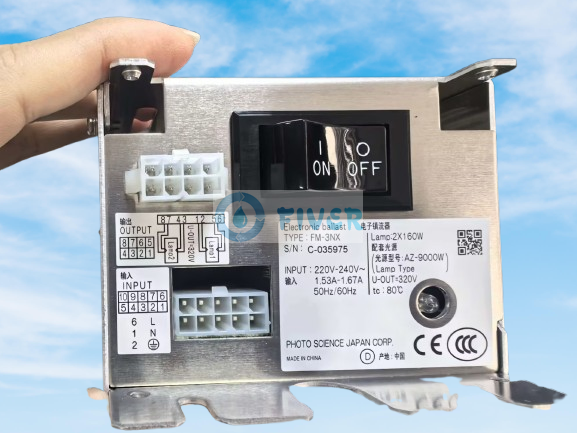

2X160W FM-3NX UV Electronic Ballasts Replacement(PH73-800-2/155):

The ballast is used for Photoscience SUV-1250ST-SP, ADVANCED,PHOTOSCIENCE AUV-800 TOC,AUV-1200 TOC,AUV-1600 TOC,

AUV-2000 TOC,AUV-2400 TOC,AUV-2800 TOC,AUV-3200 TOC,AUV-4000 TOC,AUV-4800 TOC,AUV-6000 TOC,AUV-7200 TOC,

AUV-8000 TOC,AUV-60 ST,AUV-175 ST, AUV-500 ST, AUV-750 ST, AUV-1250 ST, AUV-1500 ST, AUV-1750 ST, AUV-2000 ST, AUV-2500 ST, AUV-2750, AUV-3000 ST system.

Technical Parameter:

Input Voltage	198-264V
Max. Input Power	380W
Max. Input Current	1.53A-1.67A
Power per Lamp	2x160W UV Lamp
Lamp Current	0.75-0.85A
Operating Frequency	40-70KHz
Efficiency	≥92%
Start Way	Preheated Start
Power Factor	≥0.98
Total Harmonic Distortion	＜15%
Crest Factor	＜1.7
Ambient Temperature	－15-40℃
Maximum Case Temperature	70℃
The Authentication Meet	CE UL
1: Above is standard features. 2: OEM service is available.
