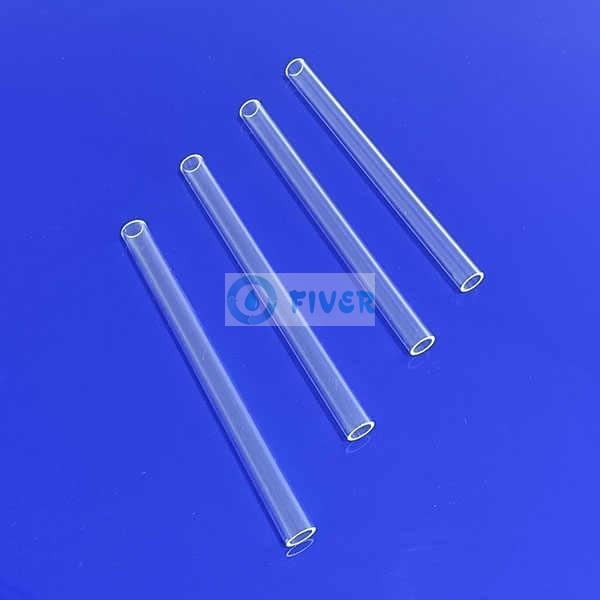

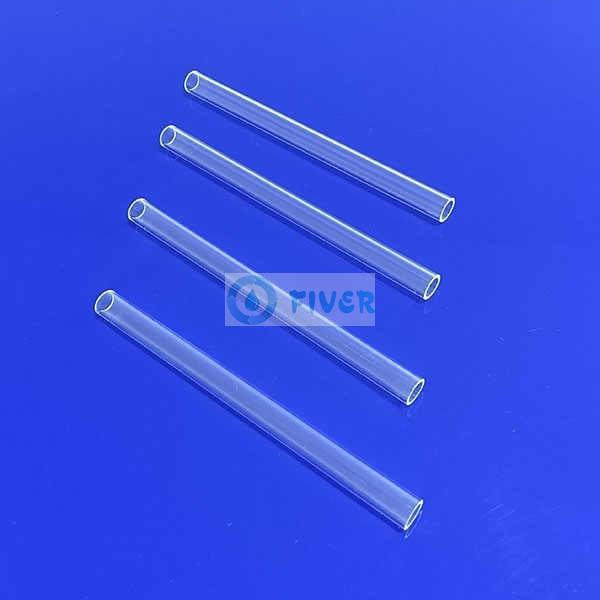

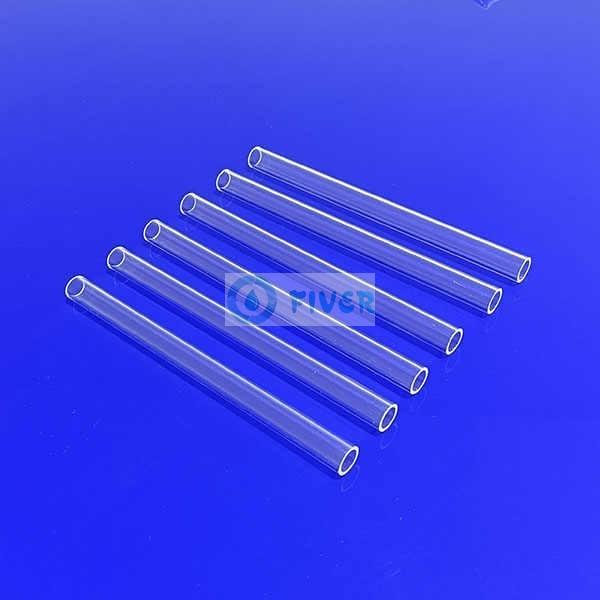

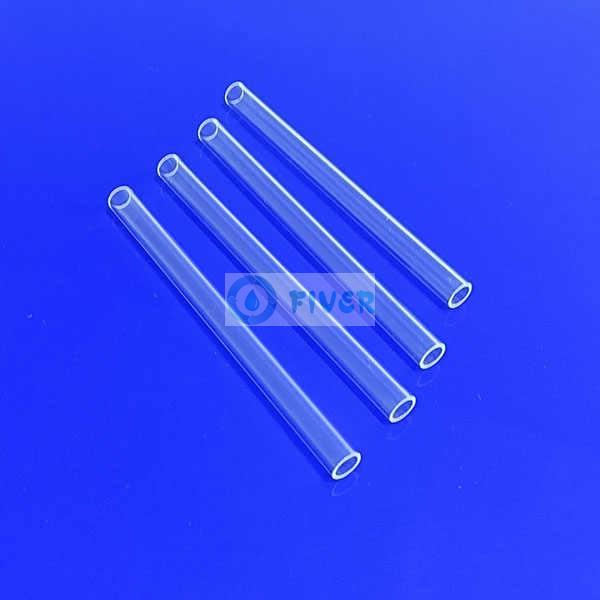

Atlantium OPM000200 Quartz Glass Tube For 12KW UV Lamp

1. High temperature resistance glass can work under 1200°C continuously,and in short time can even work under 1450°C, its softening point is 1730°C.
2.Quartz glass will not reat chemically with acid except hydrofluoric.Acid-stable is 30 times of ceramic and 150 times of stainless steel.
3.Electric insulation.
4.Excellent thermal shock stability
5.High transmission above 93%
6.Special designed for 12KW Atlantium UV lamps.

INQUIRY

Product Details

Product Tags

Atlantium OPM000200 Quartz Glass Tube For 12KW UV Lamp :

This model is suitable for 12KW Atlantium uv lamps, including OPM000111 and OPM000130.

Technical Specification:

Purity	>99.99%
Density	2.2(g/cm3)
Degree of hardness Moh' scale	6.6
Melting point	1732℃
Working temperature	1100℃
Max temperature can reach in a short time	1450℃
Acid tolerance	30 times than Ceramics , 150 times than Stainless steel
Visible light transmittance	above 93%
UV spectral region transmittance	>80%
Resistance value	10000 times than ordinary glass
Annealing point	1215℃
Softening point	1730℃
