Trojan 903988-001 UV3000 PLUS Ballast Replacement

Features:
Preheat Start
PWM dimmable fuction
Constant power design
CE Rohs List Products
0-5V output and dry contact Function
ON/OFF time up to 50,000 times

Load Lamp:
GPH1554T6,GPHHA1554T6,
NNI300,TUV325WXPT

INQUIRY

Product Details

Product Tags

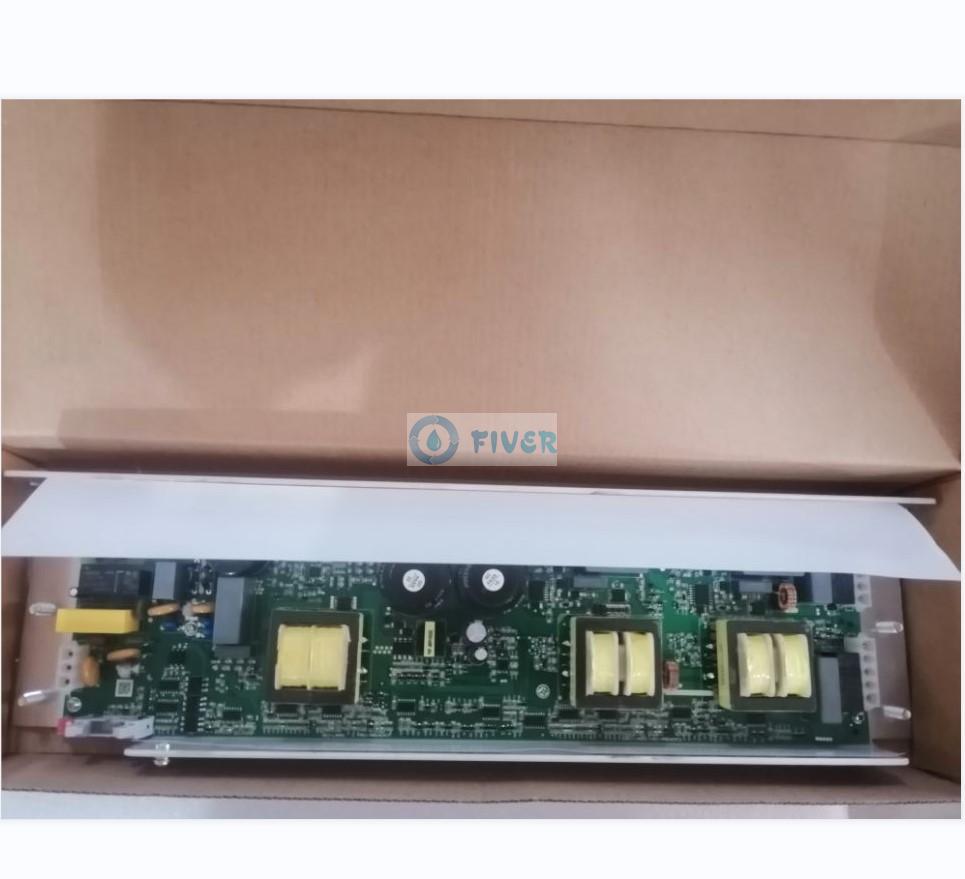

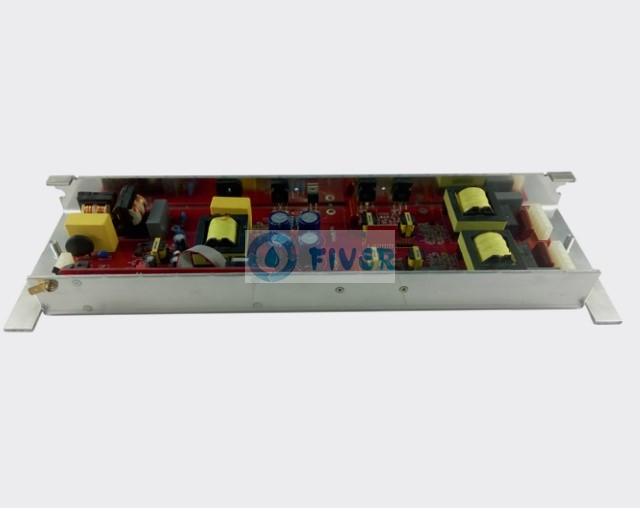

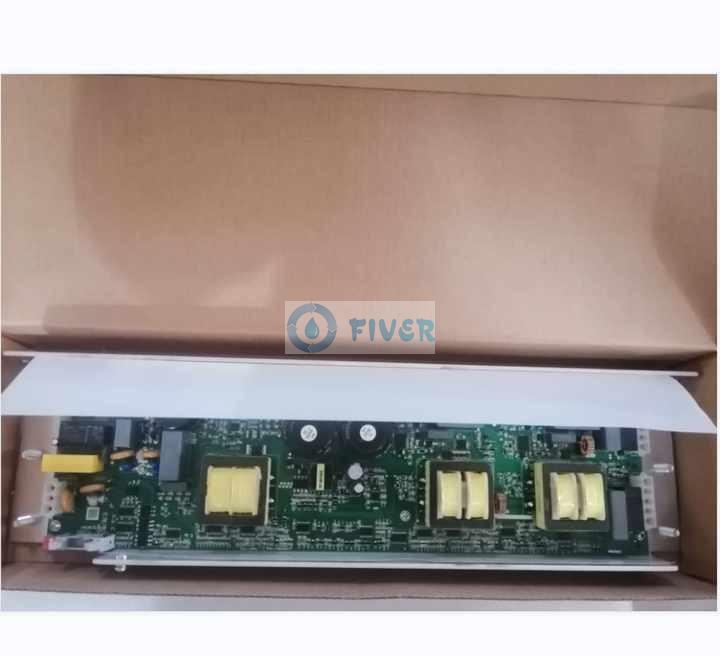

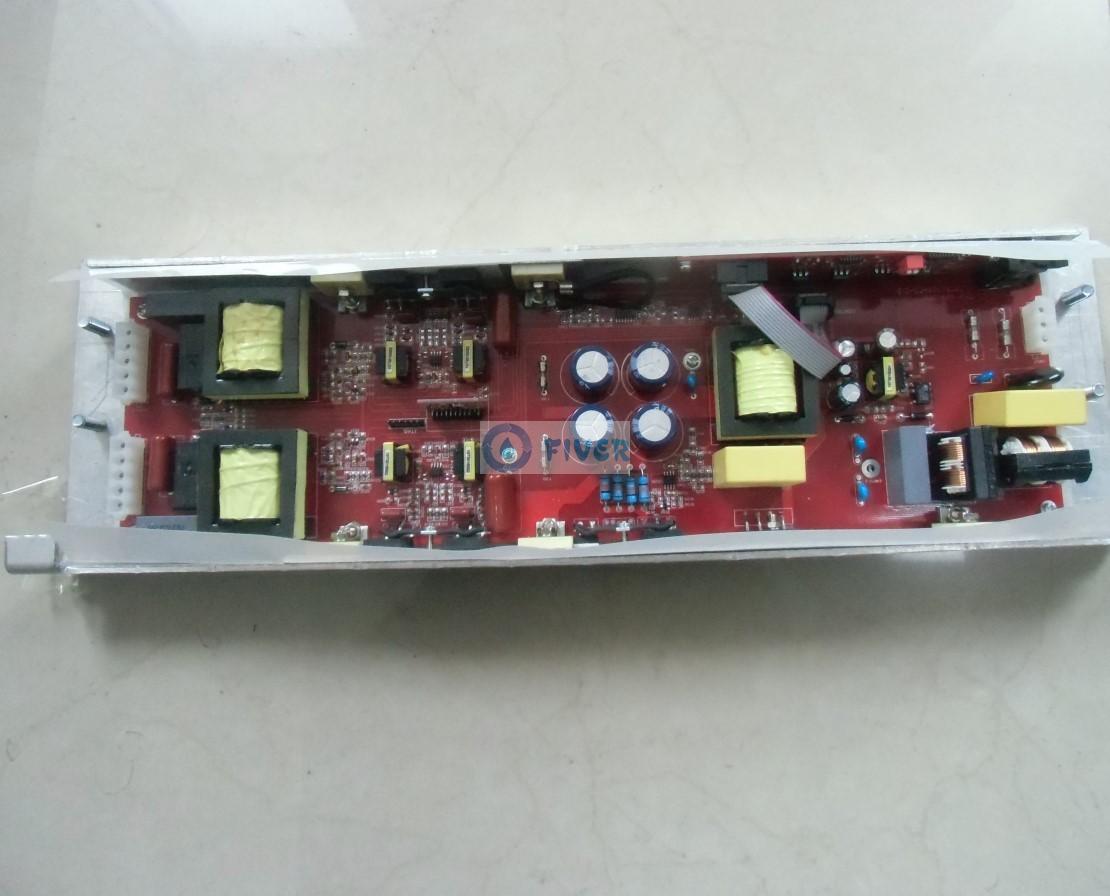

Trojan 903988-001 UV3000 PLUS Ballast Replacement:

This model is also known as Nedap 9554700,can run 2x240W uv lamps:

Technical Parameter:

Input Voltage	198-264V
Max. Input Power	692W
Max. Input Current	3.07A@230V
Power per Lamp	2/320W UV Lamp
Lamp Current	1.8-2.1A
Operating Frequency	40-70KHz
Efficiency	≥92%
Start Way	Preheat Start
Power Factor	≥0.98
Total Harmonic Distortion	＜15%
Crest Factor	＜1.7
Ambient Temperature	－15-40℃
Maximum Case Temperature	70℃
The Authentication Meet	CE UL
1: Above is standard features. 2: OEM service is available.
