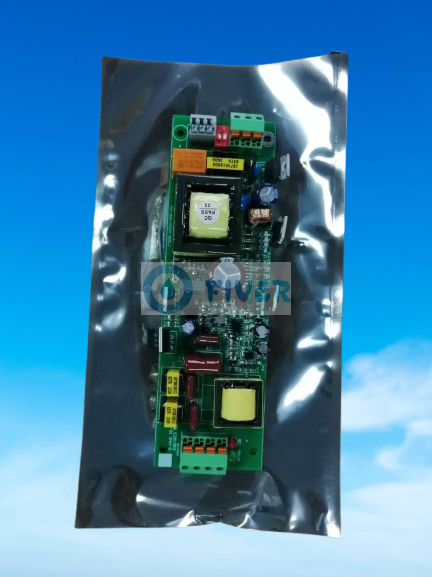

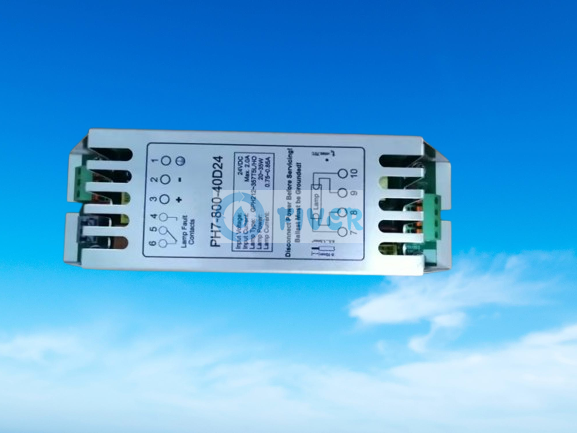

24V DC Power Supply For 48W HO UV Lamp

Features:
Pre-heat Start
Constant power design
Dry contacts and indicator
24V dc power supply design
Under-voltage protection function
Effectively protect life of battery

Load Lamp:
TUV PL-L 35W/4P HO
GHO357T5L GHO436T5L
GPH357VHT5/HO GPH436VH/HO

INQUIRY

Product Details

Product Tags

24V DC Power Supply For 48W HO UV Lamp:

This model is special designed for high output uv lamp from 10-48W.

So it has high temperature resistance.

Technical Parameter:

Input Voltage	10.8V-26.4V
Max. Input Power	48W
Max. Input Current	2.0A@24V
Power per Lamp	10-48W
Lamp Current	0.75-0.85A
Operating Frequency	40-70KHz
Efficiency	≥85%
Start Way	Preheated Start
Power Factor	≥0.99
Total Harmonic Distortion	＜15%
Crest Factor	＜1.7
Ambient Temperature	－15-40℃
Maximum Case Temperature	70℃
The Authentication Meet	CE UL
1: Above is standard features. 2: OEM service is available.
