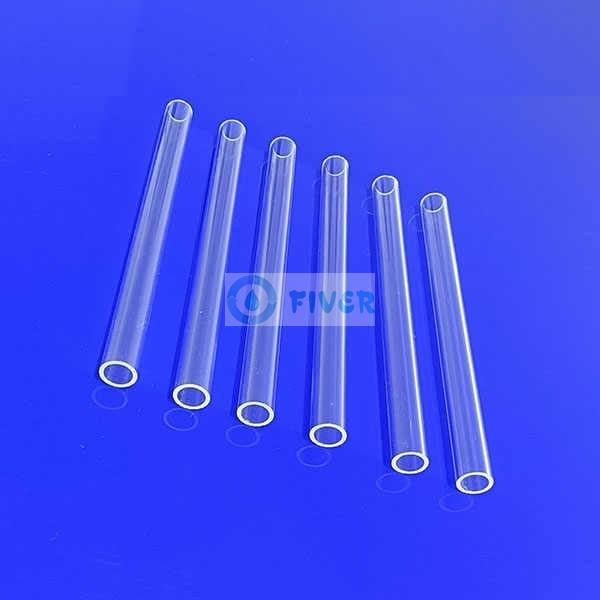

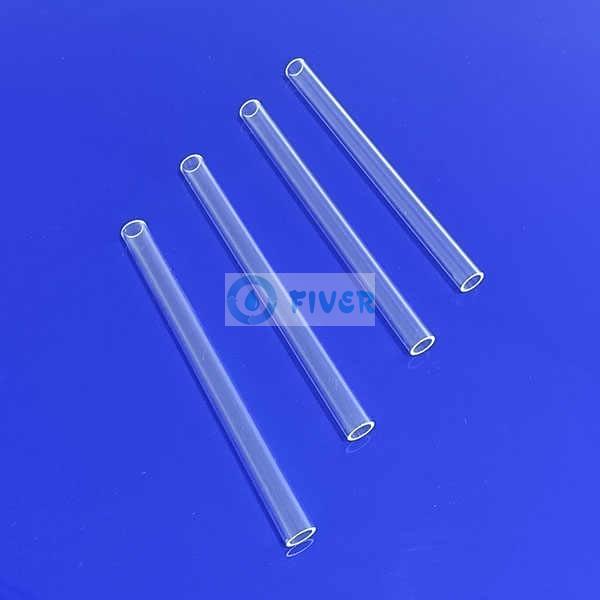

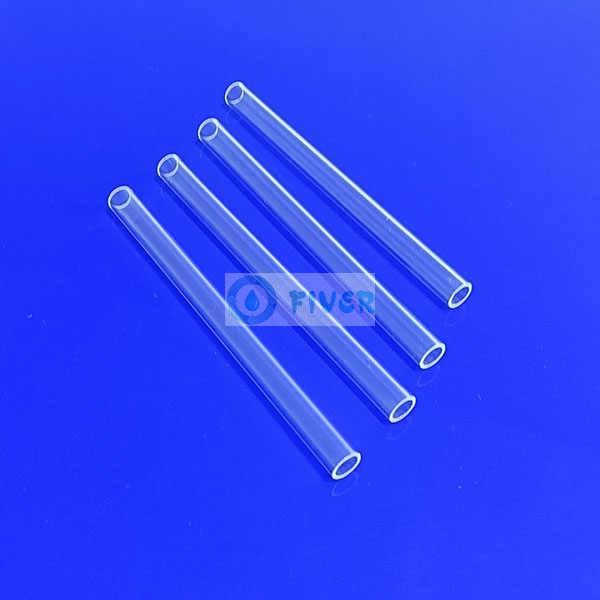

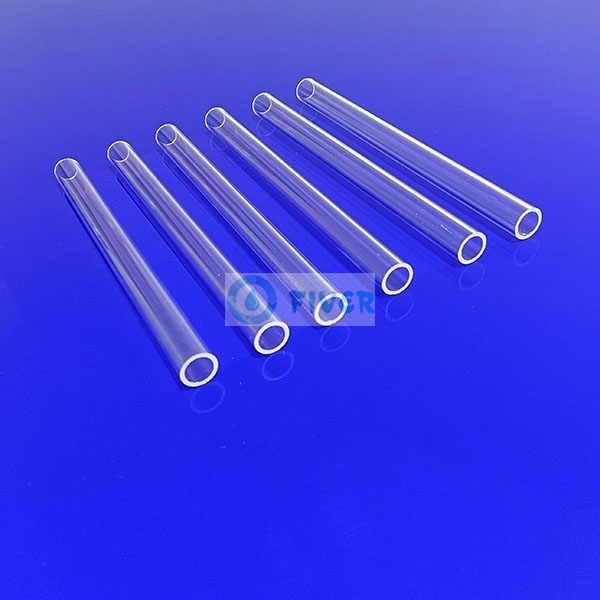

OPH000200 Quartz Sleeves For Long Neck Atlantium UV Lamps

1. High temperature resistance glass can work under 1200°C continuously,and in short time can even work under 1450°C, its softening point is 1730°C.
2.Quartz glass will not reat chemically with acid except hydrofluoric.Acid-stable is 30 times of ceramic and 150 times of stainless steel.
3.Electric insulation.
4.Excellent thermal shock stability
5.High transmission above 93%
6.Special designed for long neck Atlantium uv lamps.

INQUIRY

Product Details

Product Tags

OPH000200 Quartz Sleeves For Long Neck Atlantium UV Lamps:

This model is special designed for 4.2KW long neck Atlantium UV lamps,

includes model OPH000120,OPH000150,OPH000160 and OPH000170(euipment number is RZB300)

Technical Specification:

Purity	>99.99%
Density	2.2(g/cm3)
Degree of hardness Moh' scale	6.6
Melting point	1732℃
Working temperature	1100℃
Max temperature can reach in a short time	1450℃
Acid tolerance	30 times than Ceramics , 150 times than Stainless steel
Visible light transmittance	above 93%
UV spectral region transmittance	80%
Resistance value	10000 times than ordinary glass
Annealing point	1215℃
Softening point	1730℃
